Basic Info.
Model NO.
YS35E
Power Source
Half-Bridge Type
Connection
Plug In
Brand
Yingjiao/OEM/ODM
Experience
20 Years′experience
Quick Delievery
15-25 Days
Warranty
3 Years′ Warranty
Packaging
PE Bag,White Box,Carton
Transport Package
PE Bag, White Box, Carton
Specification
UL/CUL/TUV/GS/CE/CCC
Trademark
Yingjiao& OEM
Origin
Ningbo, China
HS Code
8504401400
Production Capacity
1, 000 PCS/Day
Product Description

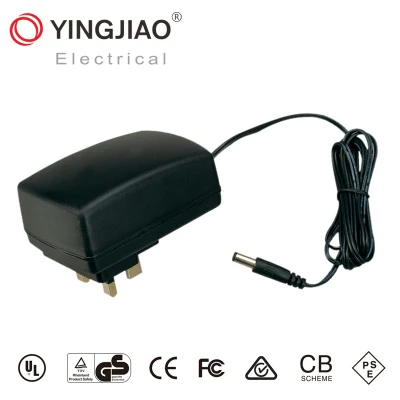

36W Switch Mode 100-240V 12V 24V 36V AC DC Adapter Power Supply
| Brand: | Yingjiao (or OEM) |
| Model: | YS35 |
| Rated Power: | 36W |
| Input: | 100V~240V, 50~60Hz |
| Output: | DC 5V/4A 7V/3.5A 9V/3.5A 12V/3A 18V/2A 24V/1.5A 36V/1A |
| Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load |
| Leakage Current: | <50μA |
| No Load Power Consumption: | <0.5W |
| Working TEMP.: | -20ºC~-50ºC |
| Protections: | Short Circuit /Over Current /Over Voltage |
| EMC Standards: | EN55011 class B,EN61000-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN60601-1-2 medical level,FCC Part 15 class B, EAC TP TC 020 |
| Safety Standards: | ANSI/AAMI ES60601-1/ES60601-1-11,CAN/CSA-C22,TUV EN60601-1-11,EAC TP TC 004 approved |
| Plugs: | US/EU/AU/UK available |
| Color: | Black |
| Size: | 87*57.5*44mm |
