Basic Info.
Model NO.
UTPS02
Modulation System
PWM
In-Out
Lifting Pressure Type
Power Supply Voltage
190-240V
Pack Sealing Size
SMD
Brand
No
Model
Ultra Thin Power Supply
Input Voltage
AC190-240V
Output Voltage
DC12 or DC24V
Wattage
60W 100W 150W 200W 300W 400W
Shell Material
Metal Case / Aluminum Case
Working Temperature
0~40c
Storage Temperature
-20~60c
Ambient Humidity
0~95% Non-Condensation
Details
Built-in Over Voltage, Over Current, and Short CIR
Design

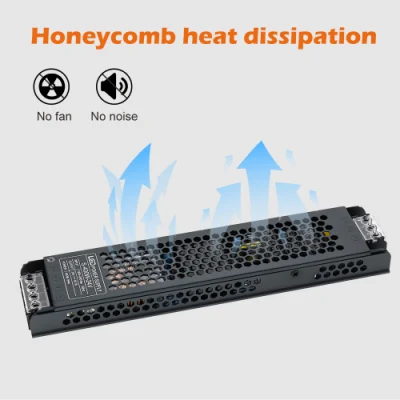

Ultra Thin 22mm,High Efficiency Heat Dissipation
Transport Package
Carton Box
Specification
0.15KG
Trademark
NO
Origin
China
HS Code
8504401400
Production Capacity
50000piece/Month
Product Description
Specification:
Input Voltage: AC190V-240V
Output Voltage: DC12V / 24V

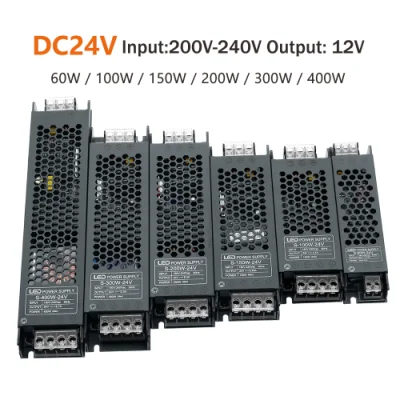

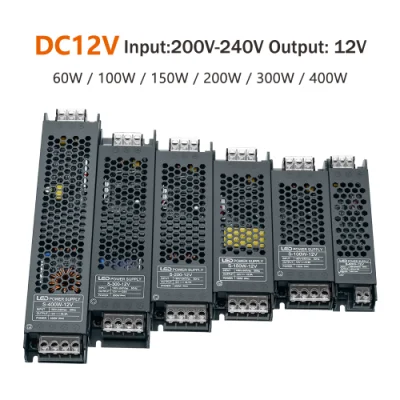

Power: 60W / 100W / 200W / 300W / 400W
Material: Aluminium alloy case / Copper core components
Working Temperature: 0~40C
Ambient Humidity: 0~95% Non-Condensation
Core Advantages:
1.Overload, overvoltage, short circuit, high temperature, multiple protection.
2.Efficient, 90% conversion rate, low temperature, energy saving.
3.High quality IC, pure copper transformer.
4.No cooling fan, quiet work.
5.High price-effective, reliability with industry standards.
