Basic Info.
Model NO.
MDR-60-24
Voltage Regulating Mode
Width Modulation Type
Power Supplying System
Terminal Power Distribution Equipment
Energy Transmission
One-way Transmission
Modulation System
PWM
Certification
CE, RoHS, CCC, CB
Brand
Funelec
Transport Package
Carton
Specification
CE and IEC
Trademark
FUNELEC or OEM
Origin
Wenzhou, China
HS Code
8504401400
Production Capacity
50000
Product Description
Wenzhou Funelec Electric Co., Ltd. is a high-tech enterprise which is engaged in the design, development, production switching power series products. we are a professional manufacturer of power supplies ,all of our products have approved CE CB and ISO9001.
The EFC capacitors and our own transformers make our products have 3 years warranty,The payment terms which we accept L/C T/T westion union and paypal !
We get a good feedback from our customers ,what we want to do is make your business easy ,
We accept OEM and Sample order,MOQ IS 1PC .
Packaging & Shipping:
1.Standard export box package
2.Delivery Time: 10-15 days for batch goods.
3.Shipment port:SHANGHAI/NINGBO
4.By Air or by Sea for batch goods,Airport/ Port receiving;
5.Customers specifying freight forwarders or negotiable shipping methods!
Our Services
1.One to one service,Feedback within 24 hours
2.Design for special packing, Products printing and logo OEM
3.Find the solution for any problems actively
Company Information
FAQ
Q: If I'm interested in your SPD when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Your SPD seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!
A: Our SPD are high quality customized.I think compare the quality first and then compare the price is the best way.
Q:Can I get a sample before the order because I really don't how is the quality of your product?
A:Of course!We also think sample order is the best way to build the trust.Please send the enquiry to us and get the sample!
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.
Pls feel free to contact us, we will be happy to provide you with the best quality products and personalized service!
The EFC capacitors and our own transformers make our products have 3 years warranty,The payment terms which we accept L/C T/T westion union and paypal !
We get a good feedback from our customers ,what we want to do is make your business easy ,
We accept OEM and Sample order,MOQ IS 1PC .
| MODEL | M DR-60-5 | M DR-60-12 | M DR-60-24 | M DR-60-48 | |
| DC VOLTAGE | 5V | 12V | 24V | 48V | |
| RATED CURRENT | 10A | 5A | 2.5A | 1.25A | |
| CURRENT RANGE | 0 ~ 10A | 0 ~5A | 0 -2.5A | 0-1.25A | |
| RATED POWER | 50W | 60W | 60W | 60W | |
| RIPPLE & NOISE (max.) Nota.2 | 80mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | |
| OUTPUT | VOLTAGE ADJ. RANGE | 5 -6V | 12-15V | 24 - 30V | 48 ~ 56V |
| VOLTAGE TOLERANCE Note.3 | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±1.5% | ±1.0% | ±1.0% | ±1.0% | |
| SETUP, RISE TIME Note.5 | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | ||||
| HOLD UP TIME (Typ.) | 50ms/230VAC 20ms/115VAC at full load | ||||
| VOLTAGE RANGE | 85 - 264VAC 120-370VDC | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| INPUT | EFFICIENCY (Typ.) | 78% | 86% | 88% | 87% |
| AC CURRENT (Typ.) | 1.8A/115VAC 1A/230VAC | ||||
| INRUSH CURRENT (Typ.) | COLD START 30A/115VAC,60A/230VAC | ||||
| LEAKAGE CURRENT | <1mA/240VAC | ||||
| OVERLOAD | 105 - 150% rated output power | ||||
| PROTECTION | Protection type: Constant current limiting, recovers automatically after fault condition is removed | ||||
| OVERVOLTAGE | 6.25-7.25V | 15.6 - 18V | 31.2-36V | 57.6 - 64.8V | |
| Protection type: Shut down o/p voltage, re-power on to recover | |||||
| FUNCTION | DC OK SIGNAL | Relay contact rating (max.): 30V/1A resistive | |||
| WORKING TEMP. | -20 - +70°C (Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| ENVIRONMENT | STORAGE TEMP., HUMIDITY | -40 ~ +85°C, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/°C (0 - 50°C) | ||||
| VIBRATION | Component: 10 - 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | ||||
| SAFETY STANDARDS | UL508, UL60950-1, TUV EN60950-1 approved | ||||
| SAFETY & | WITHSTAND VOLTAGE | l/P-0/P:3KVAC l/P-FG:2KVAC 0/P-FG:0.5KVAC | |||
| EMC | ISOLATION RESISTANCE | l/P-O/P, l/P-FG, 0/P-FG:>100M Ohms/500VDC/25°C/70% RH | |||
| (Note 4) | EMC EMISSION | Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3 | |||
| EMC IMMUNITY | Compliance to EN6100(M-2,3,4,5,6,8,11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A | ||||
| MTBF | 299.2K hrs min. MIL-HDBK-217F (25°C) | ||||

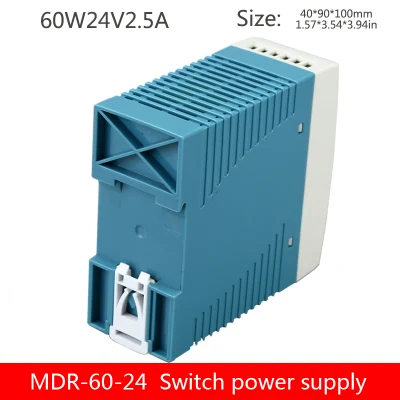

| OTHERS | DIMENSION | 40*90*100mm (W*H*D) | |||
| PACKING | 0.33Kg; 42pcs/14.8Kg/0.82CUFT | ||||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. | ||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor. | |||||
| 3. Tolerance : includes set up tolerance, line regulation and load regulation. | |||||
| 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies. | |||||
| 5. 5.Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. | |||||
