Basic Info.
Product Description
Our company is a high-tech company specialized in designing. R&D. Production and sale, the products Switching Power Supply are with the characteristics of the low price, high efficiency, high reliability, long lifetime and so on. Our products are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting projects, communication, instrumentation, etc. Our Switching Power Supply is the ideal upgraded product to replace traditional controlling transformer.
The design of this series of products is in accordance with such international standards as American UL1012, German TUVEN60950, IEC950, UL1950 and EC EMCLVD.
Relying on high-quality imported components, advanced production techniques and perfect testing equipment, we create high-quality XIMENG products. XIMENG products sell well in domestic markets and in Europe and Southeast Asia.
Our company focuses on innovating science and technology, wining a reputation with quality, and pursuing development with sincerity. We always update our equipment and create new products constantly, striving to follow the core mind of Science and Technology to improve life and supply wide customers with sincerity, high-quality products and highly efficient service.
In order to thanks to the long-term support and the cooperation of customers at home and abroad, as well as develop new business field, our company warmly welcomes all the customers to come for instruction and discuss cooperation. Let us develop together and create our prosperous future!

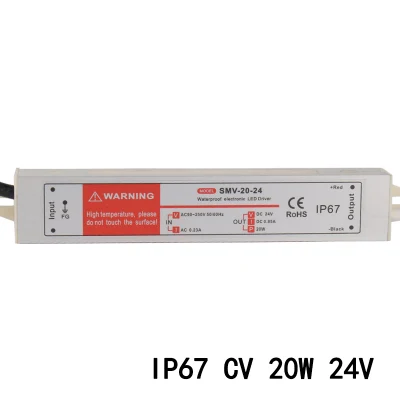

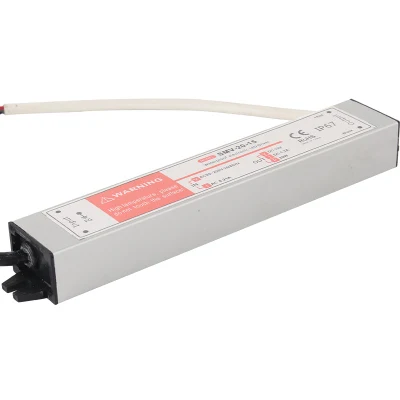

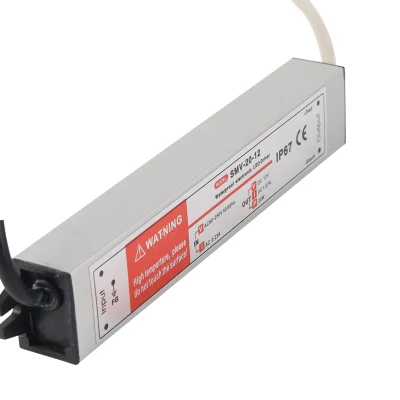

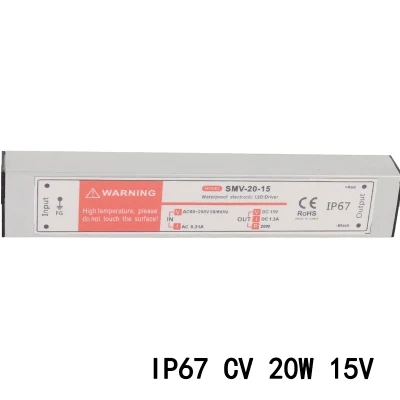

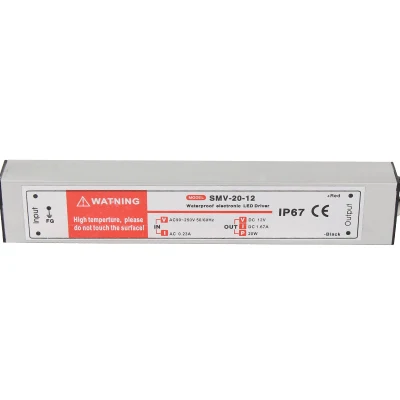

| Model | SMV-20-12 | SMV-20-15 | SMV-20-24 | |
| Output | DC output Voltage | 12V | 15V | 24V |
| Voltage tolerance | ±1.0% | ±1.0% | ±1.0% | |
| Rated Current | 2A | 1.3A | 0.8A | |
| Related Power | 20w | 20w | 20w | |
| Wave&Noise | 50mVp-p | 50mVp-p | 100mVp-p | |
| Set up,rise,hold up time | 200ms 100ms 30ms | |||
| Input | Voltage Range | 170-264VAC 47-63HZ | ||
| Input Current | 0.3A/230VAC | |||
| Efficiency | 75% | 80% | 85% | |
| AC inrush current | Cold start current 30A /230VAC | |||
| Leakage current | <0.5mA/240VAC | |||
| Protection | Overload | Related output power 105-135% start overload protection | ||
| Protection type: hiccup mode, recovery after restart power | ||||
| Over voltage | Reted output power 135-150% start over voltage protection | |||
| Protection type: hiccup mode, recovery after restart power | ||||
| Over temperature | When temp of transistor inner is over 150, start over temp protection | |||
| pretect mode:cutoff output,auto-recover after temperature become normal | ||||
| Environment | Working temp humidity | -10~+60°C 20%~90%RH | ||
| Stor temp, humidity | -20~+85°C 20%~90%RH Non-condensing | |||
| Withstand vibration | 10-500Hz,2G 10min/Ccle, period for 60min, each axes | |||
| Safety | Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.5KVA | ||
| Isolation resistance | I/P-O/P: I/P-FG,O/P-FG:100M Ohms/500VDC | |||
| Standard | Safety standard | Fit UL1012 IP67 | ||
| EMC standard | Fit EN55022 CLASSA | |||
| Size | size | L180*W28*H20mm | ||
| Package | 0.2kg, 80 pcs/16kg | |||
| Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25 C of ambient temperature.2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.3.Tolerance: includes set up tolerance, line regulation and load regulation. | ||||
1. Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes , We have product catalogue.Please contact us on line or send an Email to sending the catalogue.
2. Q: I need your price list of all your products, do you have a price list ?
A: We do not have a price list of all of our products. Because we have so many items,and it's impossible to mark all of their price on a list.And the price are always changing because of the producing cost.If you want to check any price of our products, please feel free to contact us.We will send offer to you soon!
3. Q: I can't find the product on your catalogue, can you make this product for me?
A: Our catalogue shows most of our products,but not all.So just let us know what product do you need, and how many do you want.If we do not have it,we can also design and make a new mould to produce it.For your reference,making a ordinary mould will take about 35-45days."
4. Q: Can you provide samples ? Are the samples free ?
A: Yes,we can provide samples.Normally,we provide samples for test or quality checking.But you have to pay for the sample and shipping cost.
5. Q: What kind of payment do you accept ? Can I pay RMB ?
A: We accept T/T(Wire transfer),Western Union LC and Paypal. Please be sure that we can receive the same amount of the Invoice. And you can pay money In RMB. No problem."
6. Q : What about your delivery time?
A: We have a lot of products in stock.We can send the stock products in 3 work days. If without stock,or stock is not enough, we will check the delivery time with you."
7. Q : How to ship my order ? Is it safe?
A: For small package, we will send it by Express, such as DHL,FedEx,,UPS,TNT,EMS.
8.Q: Where is your market?
A. Our products are popular export to Africa, South Asia, Middle East and so on. Surely we hope you can join us and make mutual benefits from our cooperation.
9.Q: What's the loading port?
A. Usually we prefer Ningbo port (Zhejiang) for delivery, others like Shanghai port is ok.
10.Q: Could you offer Form A or C/O?
A . Absolutely it is not a problem.
11.Q: How long is the warranty time?
A . 12months from you receive the goods.
12.Q: What kind of certificate do you have?
A. We have CE, ISO9001, SONCAP and testing report for all our products.
13.Q: What's the payment terms?
A. We accept T/T, 30% deposit and 70% balance before shipment.
14.Q: Would you accept to use our logo?
A. Quantity is over 500pcs/capacity, it is absolutely no problem to do OEM.
15.Q: We want to know about production capacity.
A. Our average capacity is 50000 pcs per month.
16.Q: What kind of material of transformer?
A. We have two types, one is 100% aluminum EI transformer, other one is 100% aluminum toroidal transformer. It depends on your requirements. In fact, those two have no difference for usage. "Any requirements or question,welcome to ""Send"" us an e-mail Now!!!
It's our great honor to do services for you! You also can get the FREE SAMPLES soon."
