Basic Info.
Model NO.
RW1-3K&RG6-20K
Application
Communication
Classification
Lighting/Power
Standby Time
Long-acting Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Customization
Equipment Mode
Decentralized
Brand
Reros
OEM/ODM
Workable
Delivery Time
7-30days
Color
Black
Battery
Li
Power Factor
1.0
Transport Package
Carton
Specification
Size: 375*440*88mm;
Trademark
Reros
Origin
China
HS Code
85044020
Production Capacity
1000 PCS Per Month
Packaging & Delivery
Package Size
280.00cm * 145.00cm * 133.00cm
Package Gross Weight
10.000kg
Product Description
Product Introduction

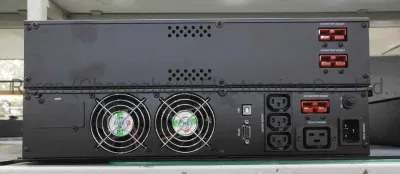

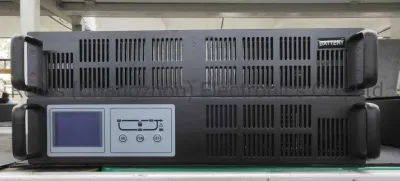

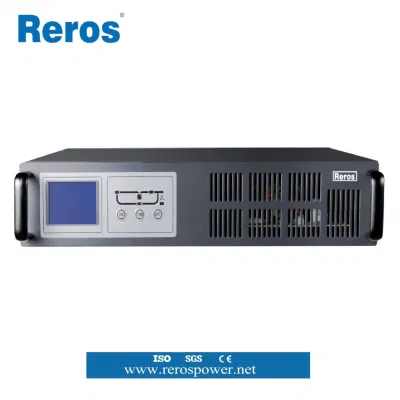

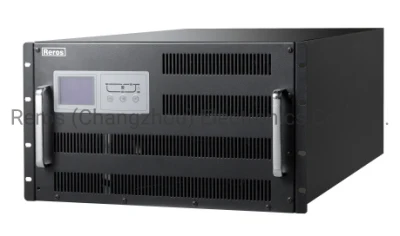

RW series is based on rack-mount UPS, which is ideal for data center, IT device and telecommunication, etc. Compared with lead acid battery, it have many advantages, such as longer cycling lifetime, smaller size, better environmental protection and high reliability.Main feature
1.Full digital control technology
2.Output power factor up to 1.0
3.LCD display panel
4.RS232 communication port
5.Intelligent SNMP+USB+EPO+dry contact (optional)
6.High power density design
7.online double conversion
8.External battery pack,rack kits(optional)
9.ECO function
Application
Data center
Mobile Telecom system
IT device
Precision instrumental
Specifications
| Model | RW1K S/L | RW2K S/L | RW3K S/L | RG116K S/L | RG11/3110K S/L | RG11/3115KL | RG11/3120K L | |||
| Capacity | 1kVA | 2kVA | 3kVA | 6kVA | 10kVA | 15kVA | 20kVA | |||
| Input features | ||||||||||
| Input(Vac) | 120~300 | 120~300(1/1)/266-475(3/1) | ||||||||
| Frequency(HZ) | 45~66 Automatically select synchronization range according to grid frequency | |||||||||
| Phase | Single phase | Single phase /3φ4W+PE | ||||||||
| Power factor | Full load≥0.95 | Full load≥0.98 | ||||||||
| Battery voltage(Vdc) | 24/36 | 48/72 | 72/96 | 192 | ||||||
| Battery type | 2*9Ah 12V/Exte rnal | 4*9Ah 12V/ External | 6*9Ah 12V/External | 16*9Ah 12V/External | 16*9Ah 12V/External | External | ||||
| Output features | ||||||||||
| Power factor | 1.0 | |||||||||
| Voltage(V) | 220/230/240±1% | |||||||||
| Frequency(HZ) | 50/60±0.05%(battery mode) | |||||||||
| Transfer time(ms) | 0 | |||||||||
| Efficiency (AC mode @ full loads) | ≥92% | ≥93% | ||||||||
| Waveform | Linear Load THD<3%;Non-linear Load THD<5% | |||||||||
| Overload capacity | 105%~129% full load keep 60s;130%~150% load keep 30s; Above 150% load keep 300ms | 105%-125%,transfer to bypass after 10 mins; 125%-150%, transfer to bypass after 30secs; 30 second, cut off input after 1 min;>150%,transfer to bypass after 0.5 second | ||||||||
| Crest factor | >3:1 | |||||||||
| Others features | ||||||||||
| DC start | Yes | |||||||||
| Backup time | Long backup time, can be extended freely | |||||||||
| Charge recovery time | Determined by the extended battery capacity | |||||||||
| Communication function | RS232(USB/dry contact are optional) | |||||||||
| SNMP(Optional) | Can be network monitored by SNMP adapter | |||||||||
| Display | LED display UPS work status, LCD display UPS work parameters | |||||||||
| Noise (dB) | <50(within 1 meter) | <55(within 1 meter) | ||||||||
| Parallel function | No | Yes(optional) | ||||||||
| Alarm | Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection | |||||||||
| Protection | Input over-voltage protection, battery under-voltage protection, overload protection, short circuit protection, over temperature protection | |||||||||
| Working temperature(ºC) | 0~40 | |||||||||
| Humidity | 0~95%,Non condensing | |||||||||
| Size(D×W×H) (mm) | 375×440×88(2U) | 612×440×88(2U)/375×440×88(2U) | 612×440×130(3U) | 1/1: 612×440×130(3U)/ 3/1:700×440×130(3U) | 660×440×260(6U) | |||||
| Weight(KG) | 14/7 | 29 /9 | 33 /10 | 55 /19 | 57/21(1/1) 57/22(3/1) | 32 | 38 | |||
Note:
Because the products are continuously improved, please contact the company or dealer to inquiry the latest specification.
FAQ
1)What is your minimum order quantity?
A: For common specification, there is no minimum order quantity, and one piece could also be supplied. The difference is just the price and schedule. If your request is some special, we need to calculate it accordingly.
1)What is your minimum order quantity?
A: For common specification, there is no minimum order quantity, and one piece could also be supplied. The difference is just the price and schedule. If your request is some special, we need to calculate it accordingly.
2)Is OEM/ODM available?
A: Yes, it is! Our products can be Customized. We have 5 senior engineers in our R&D Dept.
3)What is the Terms of Payment?
A: T/T, L/C, D/P, D/A, Western Union, Paypal and MoneyGram (for Small-amount payment).
4)Can you offer Form A or Form E or C/O?
A: Yes, it's no problem, we could apply it from our local government.
5)What's the warranty condition for your UPS?
A: 1 year warranty after the shipment of boarding date, and 1% single phase of UPS amount by free Spare Parts shipped together with each order shipment;
6)How is your delivery time?
A: It depends on your order quantity and specification, usually about 7~20days, and it won't cost more than 35days
7)What are the advantages of your company?
A: Reros has about 30 years manufacturing experience, and more than 20 years exporting experience. We promise your quality and service all the time. Adequate inventory, and supply guarantee for the subsequent renewal of supply, providing different solutions.
