Factory Test Use 800A24V High-Power High-Precision DC Test Power Supply Programmable DC Switching Power Supply

Get the best in high-power, high-precision DC testing with our 800A24V programmable DC switching power supply. As a factory, we deliver top-quality products.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
IPS-ATDH24800
Voltage Regulating Mode
Frequency Modulation Type
Power Supplying System
Terminal Power Distribution Equipment
Energy Transmission
One-way Transmission
Modulation System
SMPS
Certification
CE
Brand
Idealplusing
Output Voltage
0~24VDC
Output Current
0.1~800A
Max Power
19.2kw
OEM
Support
ODM
Support
Size
L460*W560*H720(mm)
Net Weight
90kg
Gross Weight
100kg
Transport Package
Carton
Specification
24VDC 800A 19.2KW
Trademark
IDEALPLUSING
Origin
China
Production Capacity
10000PCS/ Month

Product Description

Factory Test Use 800A24V high-power high-precision DC test power supply programmable DC switching power supply

I. INTRODUCTION

   The adjustable power supply adopts high-frequency switching power technology. it is controlled by a high-performance microcomputer. The voltage and current can be adjusted independently.

    The adjustable power supply is widely used in industrial control and electronic products aging and testing. It is suitable for all kinds Resistance load, capacitive load, inductive load



II. CUSTOMIZED RANGE
       l 1 Phase: AC220V/120V±15%,50Hz/60Hz;

l 3 Phase: AC380V±15%,50Hz/60Hz;

l 3 Phase: AC450V±15%,50Hz/60Hz;

l 1~10000V,Stabilizer voltage value. 1% to 100% adjustable

l 1~5000A,Constant current value. 1% to 100% adjustable

l Adjustable mode: Keystroke type / Knob type / Touch screen optional



III. TECHNICAL PARAMETER


AC INPUT 3 phases 380VAC±15% 50/60HZ
DC OUTPUT VOLTAGE 0~24VDC
OUTPUT CURRENT 0~800A
Output characteristic Constant voltage and constant current switchable
Output power 19.2KW
Voltage output accuracy 0.5%FS
Current output accuracy 0.5%FS
Source effect ≤0.2%FS
Load effect ≤0.2%FS
Voltage Display resolution 0.1V
Current Display resolution 0.1A
ripple factor(Vrms) ≤2% FS
Operating characteristics Support (24*7) long time
Work Efficiency >90%
Power factor >93%
Adjustment accuracy <0.1%
Protection mode Lack phase
Over-heating
Over-voltage
Over-current
Short-circuit
Output indicator LED digital voltage and current display
Cooling fan Force cooling
Ambient temperature -10~+40 degree
Insulation strength Input-output; Input-chassis; AC200V, 10mA, 1min
Insulation resistance Input-output; Input-chassis; Output-chassis: > 20m
Insulation grade B
Waterproof Level IP20
Protect Level IP20(Instructions for ordering protective levels for equipment in special environments)
Dimension H460*W650*L720(MM)
NW 90KG
Application Testing aging of electronic and electrical products, testing of new energy vehicles, scientific research institutions or school laboratories and experiments, etc.
Special Function Customization Time control function, ampere hour meter function, intelligent temperature control function. Intelligent computer touch screen display operation interface. RS-485,PLC or RS232 communication port , LC Filtering function

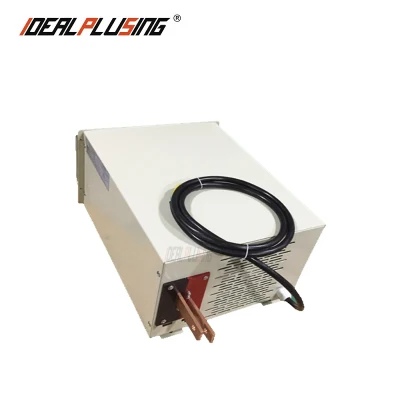

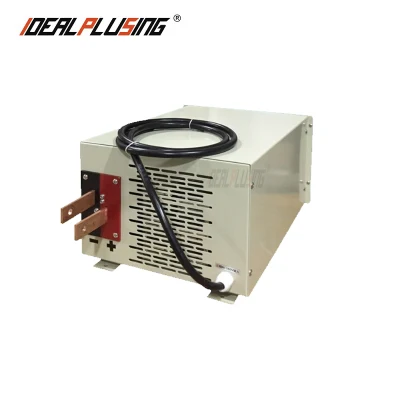

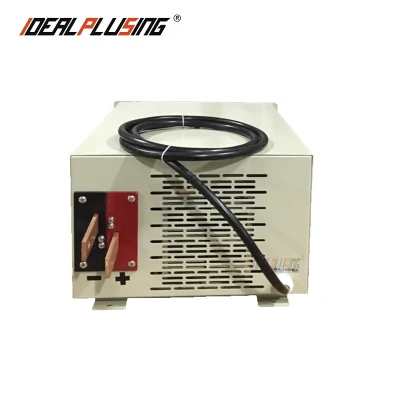

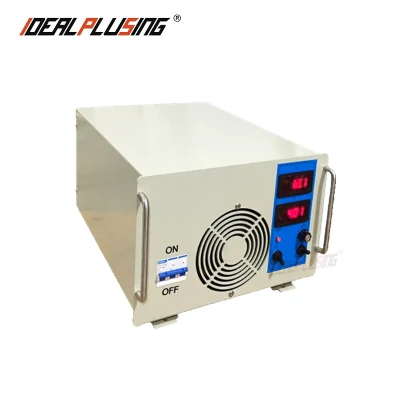

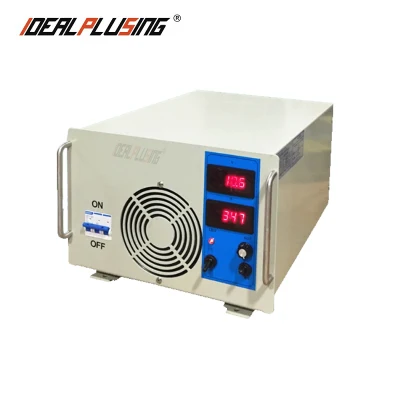

IV. REFERENCE PICTURE
     Factory Test Use 800A24V High-Power High-Precision DC Test Power Supply Programmable DC Switching Power Supply

Factory Test Use 800A24V High-Power High-Precision DC Test Power Supply Programmable DC Switching Power Supply Factory Test Use 800A24V High-Power High-Precision DC Test Power Supply Programmable DC Switching Power Supply Factory Test Use 800A24V High-Power High-Precision DC Test Power Supply Programmable DC Switching Power Supply

Factory Test Use 800A24V High-Power High-Precision DC Test Power Supply Programmable DC Switching Power SupplyFactory Test Use 800A24V High-Power High-Precision DC Test Power Supply Programmable DC Switching Power SupplyFactory Test Use 800A24V High-Power High-Precision DC Test Power Supply Programmable DC Switching Power SupplyFactory Test Use 800A24V High-Power High-Precision DC Test Power Supply Programmable DC Switching Power SupplyFactory Test Use 800A24V High-Power High-Precision DC Test Power Supply Programmable DC Switching Power SupplyFactory Test Use 800A24V High-Power High-Precision DC Test Power Supply Programmable DC Switching Power SupplyFactory Test Use 800A24V High-Power High-Precision DC Test Power Supply Programmable DC Switching Power Supply
