Product Description

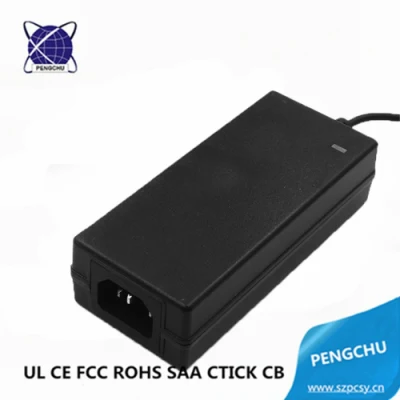

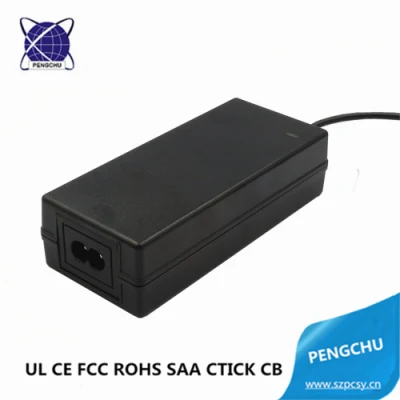

Dekstop AC/DC 12Volt 5Amp SMPS 60W Switch Mode Power Supply
Features:
- Universal AC input/Full range(up to 264Vac)
- Protection: Short circuit/Over current/Over temperature/Over voltage
- High efficiency, long life and high reliability
- 100% full load burn-in test
- Meet UL ETL CE FCC RoHS SAA CB C-Tick PSE Approved and DOE Level VI Standard
- Two years warranty
- Class I design or Classs II design
Why Choose US:
- More than ten years experience of power supply manufacturer(2.5W-1200W Power Supply All Optional)
- Professional team for after-sale service 7*24
- Experienced R & D team and profesional sales team
- Accept OEM & ODM service , we will evaluate, design and produce your customized products
- Offer confidentiality agreement to protect your profit, with us your business will be in safe your money in safe.
- Meet the safety requirements of various countries.
- Meet the environmental protection RoHS requirements of various countries.
- Meet the requirements of conducting radiation (EMC/EMI) of various countries.
Product Description:
| Dekstop AC/DC 12Volt 5Amp SMPS 60W Switch Mode Power Supply | |
| DC Voltage | 12V |
| Rate Current | 5A |
| Current range | 0~5A |
| Rate power | 65W |
| Voltage tolerance | ±5% |
| Line Regulation | ±1% |
| Load Regulation | ±5% |
| AC Input | 100~240Vac 50/60Hz max: 90~264Vac 47/63Hz |
| Efficiency | >88% |
| Short Circuit Protection | Shall be protected when any output operation in circuit shortcondition,and shall be auto restart when the fault condition is removed. |
| Over Current Protection | 130%-150% |
| Over Voltage Protection | 115%-135% |
| Operating Temperature | -10-50ºC (±10ºC) |
| Relative Humidity | 20%-90% RH |
| Storage Temperature | -40-80ºC (±10ºC) |
| DC Connector | 5.5*2.5mm or 5.5*2.1mm 4pin or bare wire (Customized Available) |
| DC Cable | 1.2m/1.5m/1.8m(Customized Available) |
| AC Cable | 1.2m ac power cord with USA/UK/EU/AU/India plugs |
Product Certificates:
Pengchu product with international approval.
US Market: UL FCC ETL DoE Level VI Efficiency,
EU Market: CE CB RoHS ERP
UK Market: CE CB ERP
AU Market: SAA C-tick
JP Market: PSE
KR Market:KC
| Phenomenon | Standard |
| UL | UL 62368 (UL No.: E499459) |
| CB | IEC 62368-1:2014 |
| CB | IEC 60950 |
| CE | EN 60335 |
| Medical | EN 60601 |
| CE | EN 60950 |
| CE | EN 61347 |
| CE | EN 61558 |
| CE | EN 62368 |
| PSE | J60065 / J55013/J55023/J3000 |
| SAA | AS/NZS 62368 |
| More Certificates Please Contact Us | |
This plastic shell of power adapter suit for this model:(All Optional)
| No.: | Model: | Output Voltage | Output Current | Output Power | Net Weight |
| 1 | PC-050070 | 5V | 6A | 30W | 270g |
| 2 | PC-050070 | 5V | 7A | 35W | 270g |
| 3 | PC-080050 | 8V | 5A | 40W | 270g |
| 4 | PC-120050 | 12V | 5A | 60W | 270g |
| 5 | PC-140045 | 14V | 4.5A | 60W | 270g |
| 6 | PC-160040 | 16V | 4A | 60W | 270g |
| 7 | PC-1850342 | 18.5V | 3.42A | 65W | 270g |
| 8 | PC-1900342 | 19V | 3.42A | 65W | 270g |
| 9 | PC2000325 | 20V | 3.25A | 65W | 270g |
| 10 | PC-240025 | 24V | 2.5A | 60W | 270g |
| 11 | PC-360015 | 36V | 1.5A | 60W | 270g |
| 12 | PC-4800125 | 48V | 1.25A | 60W | 270g |
Product Application:
AC Power Cord & DC Jack:
Company Information:
Trade Term:
- Payment term: PayPal, Western Union, T/T
- Leading time:7-9 working days
- Sample: 3-5 working days after payment confirmed
- Freight cost: Customers's shipping agent or our forwarder
FAQ:
Q: How many Voltage you can supply?
A: 5V 6V 9V 10V 12V 16V 28V 29V 24V 36V 48V.
Q: How many current you can supply?
A: 0.5A 1A 1.5A 2A 2.5A 3A 3.5A 4A 5A 10A 15A 20A 30A 40A.
Q:Are you manufacturer?
A:We are a professional power supply manufacturer with high reputation in this field.
Q.Do you have certificates for your products?
A:Yes,we have UL,ETL,FCC,RoHS,CE,KC,SAA, PSE,REACH and DOE Level VI Standard Certifications.
Q: What is your samples lead time or goods delivery time?
A: Samples time about 3 working days,goods time about 12 working days.
Q:Can we print our logo?
A: We can print your logo on both power adapter and package.
