Basic Info.
Model NO.
KGY-30A-12V
Voltage Regulating Mode
Frequency Modulation Type
Power Supplying System
Terminal Power Distribution Equipment
Energy Transmission
One-way Transmission
Modulation System
PWM
Certification
CE, RoHS, ISO, CCC, CB, FCC, SGS
Brand
Wenbo
Type
High Frequency Switch Mode Rectifier
Application
Electroplating
Output Voltage
0-12V
Output Current
0-30A
Certificate
CE/SGS
Transport Package
Plywood Case/ Hard Carton Box
Specification
Customized
Trademark
Wenbo
Origin
Shandong China
HS Code
8504401990
Production Capacity
2000 Sets/Month
Product Description
We are professional and creative manufacturer.
Our reliable quality of rectifiers will definitely satisfy your requirements.
Product Description
Buying Guides:
We are highly appreciate if you can provide the following details.
1. The productivity: xx per hour, xx hours per day.
2. Your application with the machine.
3. The power of your country, output &input voltage, output current, single phase/three phase?
4 .Air or water cooling model?
5.The shell is iron or PP?
6.See whether you need below optional functions or not?
Optional Function
Advantage:
1) Small, light and high efficiency
2) High frequency pulse current output
3) Flexible use, simple operation
4) Complete protection function
5)extra function:0-5v,4-20ma,0-10v,rs485,PLC interface,timer,ampere hour meter,slow
start,touch screen
Follow ISO 9001 quality standard,CE&SGS certificate
Product Application
Wenbo Rectifier is widely used in plating gold,silver,zinc,nickel,copper,chrome, anodizing,
electrolysis,Electrophoresis…and win high reputation among our customer. Several innovative
technologies obtain national patents and users worldwide.
Hot Sale products
Package &shipping
Our reliable quality of rectifiers will definitely satisfy your requirements.
Product Description

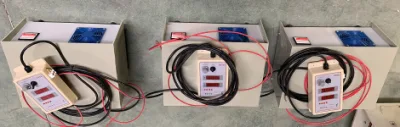

| DC Transformer with 30A 12V | |
| input voltage | Single phase 220V±10%,3 phase 380VAC±10%,OR OEM 415V,440V,480V,600VAC |
| output voltage | 0-12v dc adjustable |
| output current | 0-30a adjustable |
Adjustment range | From 0-100%continuously adjustable voltage and current |
Output conditioning method | Switching mode,PWM Pulse control |
Machine efficiency | ≥90% |
Constant voltage control accuracy | Within 1.0%of rated output voltage |
Constant current control accuracy | Within 1.0%of rated output current |
| Insulation resistance | 5MΩ or more |
| Cooling system | Forced air cooling water cooled can be choosed |
| Operating temperature | -15-45ºC(overheating self-protect) |
| Ambient temperature | -30-65ºC |
| Relative humidity | 30-85% |
| protection | Over heating,over current,over voltage,lack phase,over load,input over/low voltage |
| Control mode | Digital remote control box |
Buying Guides:
We are highly appreciate if you can provide the following details.
1. The productivity: xx per hour, xx hours per day.
2. Your application with the machine.
3. The power of your country, output &input voltage, output current, single phase/three phase?
4 .Air or water cooling model?
5.The shell is iron or PP?
6.See whether you need below optional functions or not?
Optional Function
Advantage:
1) Small, light and high efficiency
2) High frequency pulse current output
3) Flexible use, simple operation
4) Complete protection function
5)extra function:0-5v,4-20ma,0-10v,rs485,PLC interface,timer,ampere hour meter,slow
start,touch screen
Follow ISO 9001 quality standard,CE&SGS certificate
Product Application
Wenbo Rectifier is widely used in plating gold,silver,zinc,nickel,copper,chrome, anodizing,
electrolysis,Electrophoresis…and win high reputation among our customer. Several innovative
technologies obtain national patents and users worldwide.
