Basic Info.
Model NO.
HDR
Input Voltage
110-220V
Connection Mode
Series Switching Power Supply
Starting Mode
Separate-excited Switching Power Supply
Voltage Regulating Mode
Width Modulation Type
Power Supplying System
Terminal Power Distribution Equipment
Energy Transmission
One-way Transmission
Modulation System
PWM
Certification
CE, RoHS, CCC, FCC
Brand
Nvvv
Description
Power Suppy Compact
Mounting Type
Guide Rail
MOQ
1psc
Input
100-220V
Packing
Carton
Efficiency
93%
Model
Hdr
Features
Copper
Application
Power
Output Voltage
5V/12V/24V/48V
Transport Package
Safety Packaging
Specification
105*90*54.5mm
Trademark
NVVV
Origin
Zhejiang, China
Production Capacity
10000 Piece/Pieces Per Month
Product Description
![Hdr-15W/30W/60W/100W/150W 5V/12V/24V/48V Hdr Series AC-DC Ultra-Thin DIN Rail Switching Power Supply SMPS](http://img6.grofrom.com/www.heweledsupply.com/226f3j00SANbwcMnNqkf/Hdr-15W-30W-60W-100W-150W-5V-12V-24V-48V-Hdr-Series-AC-DC-Ultra-Thin-DIN-Rail-Switching-Power-Supply-SMPS.webp)
![Hdr-15W/30W/60W/100W/150W 5V/12V/24V/48V Hdr Series AC-DC Ultra-Thin DIN Rail Switching Power Supply SMPS](http://img6.grofrom.com/www.heweledsupply.com/226f3j00KwykJZCqKbcR/Hdr-15W-30W-60W-100W-150W-5V-12V-24V-48V-Hdr-Series-AC-DC-Ultra-Thin-DIN-Rail-Switching-Power-Supply-SMPS.webp)
![Hdr-15W/30W/60W/100W/150W 5V/12V/24V/48V Hdr Series AC-DC Ultra-Thin DIN Rail Switching Power Supply SMPS](http://img6.grofrom.com/www.heweledsupply.com/226f3j00jAnomdCKUqkY/Hdr-15W-30W-60W-100W-150W-5V-12V-24V-48V-Hdr-Series-AC-DC-Ultra-Thin-DIN-Rail-Switching-Power-Supply-SMPS.webp)
![Hdr-15W/30W/60W/100W/150W 5V/12V/24V/48V Hdr Series AC-DC Ultra-Thin DIN Rail Switching Power Supply SMPS](http://img6.grofrom.com/www.heweledsupply.com/226f3j00NmnkAYehGbof/Hdr-15W-30W-60W-100W-150W-5V-12V-24V-48V-Hdr-Series-AC-DC-Ultra-Thin-DIN-Rail-Switching-Power-Supply-SMPS.webp)
![Hdr-15W/30W/60W/100W/150W 5V/12V/24V/48V Hdr Series AC-DC Ultra-Thin DIN Rail Switching Power Supply SMPS](http://img6.grofrom.com/www.heweledsupply.com/226f3j00NwncmLvRQkoG/Hdr-15W-30W-60W-100W-150W-5V-12V-24V-48V-Hdr-Series-AC-DC-Ultra-Thin-DIN-Rail-Switching-Power-Supply-SMPS.webp)
![Hdr-15W/30W/60W/100W/150W 5V/12V/24V/48V Hdr Series AC-DC Ultra-Thin DIN Rail Switching Power Supply SMPS](http://img6.grofrom.com/www.heweledsupply.com/226f3j00yJnodkegPqcf/Hdr-15W-30W-60W-100W-150W-5V-12V-24V-48V-Hdr-Series-AC-DC-Ultra-Thin-DIN-Rail-Switching-Power-Supply-SMPS.webp)
![Hdr-15W/30W/60W/100W/150W 5V/12V/24V/48V Hdr Series AC-DC Ultra-Thin DIN Rail Switching Power Supply SMPS](http://img6.grofrom.com/www.heweledsupply.com/226f3j00nJFqAZeWKokU/Hdr-15W-30W-60W-100W-150W-5V-12V-24V-48V-Hdr-Series-AC-DC-Ultra-Thin-DIN-Rail-Switching-Power-Supply-SMPS.webp)
![Hdr-15W/30W/60W/100W/150W 5V/12V/24V/48V Hdr Series AC-DC Ultra-Thin DIN Rail Switching Power Supply SMPS](http://img6.grofrom.com/www.heweledsupply.com/226f3j00nJNowAvGecqR/Hdr-15W-30W-60W-100W-150W-5V-12V-24V-48V-Hdr-Series-AC-DC-Ultra-Thin-DIN-Rail-Switching-Power-Supply-SMPS.webp)
![Hdr-15W/30W/60W/100W/150W 5V/12V/24V/48V Hdr Series AC-DC Ultra-Thin DIN Rail Switching Power Supply SMPS](http://img6.grofrom.com/www.heweledsupply.com/226f3j00AdFoJRenebkf/Hdr-15W-30W-60W-100W-150W-5V-12V-24V-48V-Hdr-Series-AC-DC-Ultra-Thin-DIN-Rail-Switching-Power-Supply-SMPS.webp)
![Hdr-15W/30W/60W/100W/150W 5V/12V/24V/48V Hdr Series AC-DC Ultra-Thin DIN Rail Switching Power Supply SMPS](http://img6.grofrom.com/www.heweledsupply.com/226f3j00mwOodHeqckcU/Hdr-15W-30W-60W-100W-150W-5V-12V-24V-48V-Hdr-Series-AC-DC-Ultra-Thin-DIN-Rail-Switching-Power-Supply-SMPS.webp)

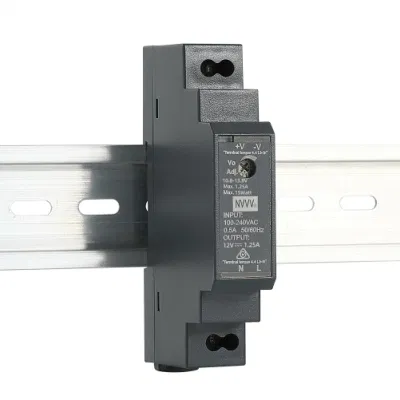

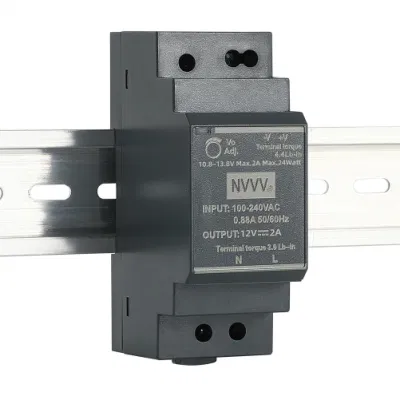

15W Ultra Slim Step Shape DlN Rail HDR - 15 series | ||||||||
SPEClFlCATlON | ||||||||
MODEL | HDR-15-5 | HDR-15-12 | HDR-15-15 | HDR-15-24 | HDR-15-48 | |||
OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 48V | ||
RATED CURRENT | 2.4A | 1.25A | 1A | 0.63A | 0.32A | |||
CURRENT RANGE | 0 ~ 2.4A | 0 ~ 1.25A | 0 ~ 1A | 0 ~ 0.63A | 0 ~ 0.32A | |||
RATED POWER | 12W | 15W | 15W | 15.2W | 15.4W | |||
RlPPLE & NOlSE(max.) Note.2 | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | |||
VOLTAGE ADJ. RANGE | 4.5 ~ 5.5V | 10.8 ~ 13.8V | 13.5 ~ 18V | 21.6 ~ 29V | 43.2 ~ 55.2V | |||
VOLTAGE TOLERANCE Note.3 | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |||
LlNE REGULATlON | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |||
LOAD REGULATlON | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |||
SETUP, RlSETlME | 2000ms, 80ms/230VAC 2000ms, 80ms/115VAC at full load | |||||||
HOLD UP TlME(TYP.) | 30ms/230VAC 12ms/115VAC at full load | |||||||
lNPUT | VOLTAGE RANGE | 85 ~ 264VAC(277VAC operational ) 120 ~ 370VDC(390VDC operational ) | ||||||
FREQUENCY RANGE | 47 ~ 63Hz | |||||||
EFFlClENCY(TYP.) | 80% | 85% | 85.5% | 86% | 87% | |||
AC CURRENT(TYP.) | 0.5A/115VAC 0.25A/230VAC | |||||||
lNRUSH CURRENT(TYP.) | COLD START 25A/115VAC 45A/230VAC | |||||||
PROTECTlON | OVERLOAD | 110 ~ 145% rated output power | ||||||
Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed | ||||||||
OVER VOLTAGE | 5.75 ~ 6.75V | 14.2 ~ 16.2V | 18.8 ~ 22.5V | 30 ~ 36V | 56.5 ~ 64.8V | |||
Protection type : Shut offo/p voltage, clamping by zener diode | ||||||||
ENVlRONMENT | WORklNG TEMP. | -30 ~ +70ºC(Refer to "Derating Curve") | ||||||
WORklNG HUMlDlTY | 20 ~ 90% RH non-condensing | |||||||
STORAGE TEMP., HUMlDlTY | -40 ~ +85ºC, 10 ~ 95% RH non-condensing | |||||||
TEMP. COEFFlClENT | ±0.03%/ºC(0 ~ 50ºC)RH non-condensing | |||||||
VlBRATlON | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along x,Y, Z axes; Mounting: Compliance to lEC60068-2-6 | |||||||
OPERATlNG ALTlTUDE | 2000 meters | |||||||
OVER VOLTAGE CATEGORY | ; According to EN61558, EN50178,EN60664-1, EN62477-1; altitude up to 2000 meters | |||||||
SAFETY | WlTHSTAND VOLTAGE | l/P-O/P:4kVAC | ||||||
lSOLATlON RESlSTANCE | l/P-O/P:100M Ohms / 500VDC / 25ºC/ 70% RH | |||||||
OTHERS | MTBF | 3724.3k hrs min. Telcordia SR-332(Bellcore); 1166.1k hrs min. MlL-HDBk-217F(25ºC) | ||||||
DlMENSlON | 17.5*90*54.5mm(W*H*D) | |||||||
PACklNG | 74g;160pcs/12.9kg/1.09CUFT | |||||||
NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The ambient temperature derating of 3.5ºC/1000m with fanless models and of 5ºC/1000m with fan models for operating altitude higher than 2000m(6500ft). |
30W Ultra Slim Step Shape DlN Rail HDR - 30series | |||||||||
SPEClFlCATlON | |||||||||
MODEL | HDR-30-5 | HDR-30-12 | HDR-30-15 | HDR-30-24 | HDR-30-48 | ||||
OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 48V | |||
RATED CURRENT | 3A | 2A | 2A | 1.5A | 0.75A | ||||
CURRENT RANGE | 0 ~ 3A | 0 ~ 2A | 0 ~ 2A | 0 ~ 1.5A | 0 ~ 0.75A | ||||
RATED POWER | 15W | 24W | 30W | 36W | 36W | ||||
RlPPLE & NOlSE(max.) Note.2 | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | ||||
VOLTAGE ADJ. RANGE | 4.5 ~ 5.5V | 10.8 ~ 13.8V | 13.5 ~ 18V | 21.6 ~ 29V | 43.2 ~ 55.2V | ||||
VOLTAGE TOLERANCE Note.3 | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||||
LlNE REGULATlON | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||||
LOAD REGULATlON | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||||
SETUP, RlSETlME | 500ms, 50ms/230VAC 500ms, 50ms/115VAC at full load | ||||||||
HOLDUP TlME(TYP.) | 30ms/230VAC 12ms/115VAC at full load | ||||||||
lNPUT | VOLTAGE RANGE | 85 ~ 264VAC(277VAC operational ) 120 ~ 370VDC(390VDC operational ) | |||||||
FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
EFFlClENCY(TYP.) | 82% | 88% | 89% | 89% | 90% | ||||
AC CURRENT(TYP.) | 0.88A/115VAC 0.48A/230VAC | ||||||||
lNRUSH CURRENT(TYP.) | COLD START 25A/115VAC 45A/230VAC | ||||||||
PROTECTlON | OVERLOAD | 105 ~ 160% rated output power | |||||||
Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed | |||||||||
OVER VOLTAGE | 5.75 ~ 7.5V | 15 ~ 18V | 18.8 ~ 22.5V | 30 ~ 36V | 57.6~ 67.2V | ||||
Protection type : Shutdown o/p voltage, re-power on to recover | |||||||||
ENVlRONMENT | WORklNG TEMP. | -30 ~ +70ºC(Refer to "Derating Curve") | |||||||
WORklNG HUMlDlTY | 20 ~ 90% RH non-condensing | ||||||||
STORAGE TEMP., HUMlDlTY | -40 ~ +85ºC, 10 ~ 95% RH non-condensing | ||||||||
TEMP. COEFFlClENT | ±0.03%/ºC(0 ~ 50ºC)RH non-condensing | ||||||||
VlBRATlON | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along x,Y, Z axes; Mounting: Compliance to lEC60068-2-6 | ||||||||
OPERATlNG ALTlTUDE | 2000 meters | ||||||||
OVER VOLTAGE CATEGORY | ; According to EN61558, EN50178,EN60664-1, EN62477-1; altitude up to 2000 meters | ||||||||
SAFETY | WlTHSTAND VOLTAGE | l/P-O/P:4kVAC | |||||||
lSOLATlON RESlSTANCE | l/P-O/P:100M Ohms / 500VDC / 25ºC/ 70% RH | ||||||||
OTHERS | MTBF | 3670.4k hrs min. Telcordia SR-332(Bellcore); 968.1k hrs min. MlL-HDBk-217F(25ºC) | |||||||
DlMENSlON | 35*90*54.5mm(W*H*D) | ||||||||
PACklNG | 0.13kg;96pcs/14.2kg/1.04CUFT | ||||||||
NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The ambient temperature derating of 3.5ºC/1000m with fanless models and of 5ºC/1000m with fan models for operating altitude higher than 2000m(6500ft). |

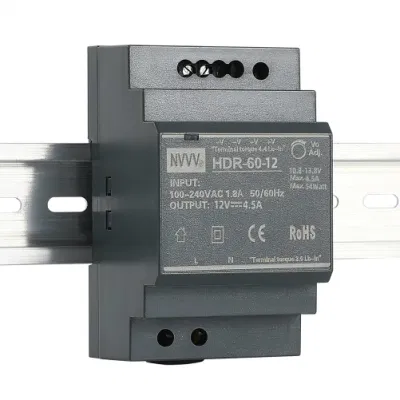

60W Ultra Slim Step Shape DlN Rail HDR-60 series | |||||||||
SPEClFlCATlON | |||||||||
MODEL | HDR-60-5 | HDR-60-12 | HDR-60-15 | HDR-60-24 | HDR-60-48 | ||||
OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 48V | |||
RATED CURRENT | 6.5A | 4.5A | 4A | 2.5A | 1.25A | ||||
CURRENT RANGE | 0 ~ 6.5A | 0 ~ 4.5A | 0 ~ 4A | 0 ~ 2.5A | 0 ~ 1.25A | ||||
RATED POWER | 32.5W | 54W | 60W | 60W | 60W | ||||
RlPPLE & NOlSE(max.) Note.2 | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | ||||
VOLTAGE ADJ. RANGE | 5.0 ~ 5.5V | 10.8 ~ 13.8V | 13.5 ~ 18V | 21.6 ~ 29V | 43.2 ~ 55.2V | ||||
VOLTAGE TOLERANCE Note.3 | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||||
LlNE REGULATlON | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||||
LOAD REGULATlON | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||||
SETUP, RlSETlME | 500ms, 50ms/230VAC 500ms, 50ms/115VAC at full load | ||||||||
HOLD UP TlME(TYP.) | 30ms/230VAC 12ms/115VAC at full load | ||||||||
lNPUT | VOLTAGE RANGE | 85 ~ 264VAC(277VAC operational ) 120 ~ 370VDC(390VDC operational ) | |||||||
FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
EFFlClENCY(TYP.) | 85% | 88% | 89% | 90% | 91% | ||||
AC CURRENT(TYP.) | 1.2A/115VAC 0.8A/230VAC | ||||||||
lNRUSH CURRENT(TYP.) | COLD START 30A/115VAC 60A/230VAC | ||||||||
PROTECTlON | OVERLOAD | 105 ~ 160% rated output power | |||||||
Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed | |||||||||
OVER VOLTAGE | 5.75 ~ 6.75V | 14.2 ~ 16.2V | 18.8 ~ 22.5V | 30 ~ 36V | 56.5 ~ 64.8V | ||||
Protection type : Shutdown o/p voltage, re-power on to recover | |||||||||
ENVlRONMENT | WORklNG TEMP. | -30 ~ +70ºC (Refer to "Derating Curve") | |||||||
WORklNG HUMlDlTY | 20 ~ 90% RH non-condensing | ||||||||
STORAGE TEMP., HUMlDlTY | -40 ~ +85ºC , 10 ~ 95% RH non-condensing | ||||||||
TEMP. COEFFlClENT | ±0.03%/ºC (0 ~ 50ºC )RH non-condensing | ||||||||
VlBRATlON | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along x,Y, Z axes; Mounting: Compliance to lEC60068-2-6 | ||||||||
OPERATlNG ALTlTUDE | 2000 meters | ||||||||
OVER VOLTAGE CATEGORY | ; According to EN61558, EN50178,EN60664-1, EN62477-1; altitude up to 2000 meters | ||||||||
SAFETY | WlTHSTAND VOLTAGE | l/P-O/P:4kVAC | |||||||
lSOLATlON RESlSTANCE | l/P-O/P:100M Ohms / 500VDC / 25ºC / 70% RH | ||||||||
OTHERS | MTBF | 3524.8k hrs min. Telcordia SR-332(Bellcore); 927.6k hrs min. MlL-HDBk-217F(25ºC ) | |||||||
DlMENSlON | 52.5*90*54.5mm(W*H*D) | ||||||||
PACklNG | 190g;60pcs/13kg/0.91CUFT | ||||||||
NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The ambient temperature derating of 3.5ºC/1000m with fanless models and of 5ºC/1000m with fan models for operating altitude higher than 2000m(6500ft). |

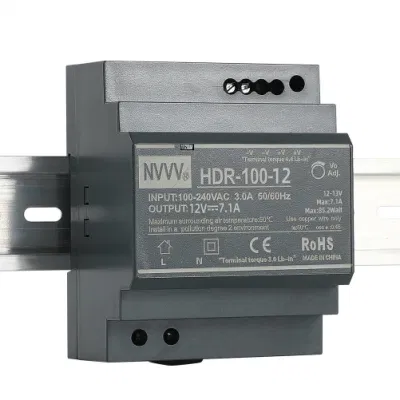

85 ~ 100W Ultra Slim Step Shape DlN Rail HDR - 100 series | ||||||||
SPEClFlCATlON | ||||||||
MODEL | HDR-100-12 | HDR-100-15 | HDR-100-24 | HDR-100-48 | ||||
OUTPUT | DC VOLTAGE | 12V | 15V | 24V | 48V | |||
RATED CURRENT | 7.1A | 6.13A | 3.83A | 1.92A | ||||
CURRENT RANGE | 0 ~ 7.1A | 0 ~ 6.13A | 0 ~ 3.83A | 0 ~1.92A | ||||
RATED POWER | 85.2W | 92W | 92W | 92.2W | ||||
RlPPLE & NOlSE(max.) Note.2 | 120mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | ||||
VOLTAGE ADJ.RANGE | 12 ~ 13V | 15 ~ 17V | 24 ~ 25.5V | 48 ~ 48.7V | ||||
VOLTAGE TOLERANCE Note.3 | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ||||
LlNE REGULATlON | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||||
LOAD REGULATlON | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||||
SETUP,RlSETlME | 500ms, 60ms/230VAC 500ms, 60ms/115VAC at full load | |||||||
HOLD UP TlME(TYP.) | 30ms/230VAC 12ms/115VAC at full load | |||||||
lNPUT | VOLTAGE RANGE | 85 ~ 264VAC(277VAC operational ) 120 ~ 370VDC(390VDC operational ) | ||||||
FREQUENCY RANGE | 47 ~ 63Hz | |||||||
EFFlClENCY(TYP.) | 88% | 89% | 90% | 90% | ||||
AC CURRENT(TYP.) | 3A/115VAC 1.6A/230VAC | |||||||
lNRUSH CURRENT(TYP.) | COLD START 35A/115VAC 70A/230VAC | |||||||
PROTECTlON | OVERLOAD | HDR-100 : 102 ~ 110% rated output power ; HDR-100-XXN : 105 ~ 150% rated output power | ||||||
Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed | ||||||||
OVER VOLTAGE | 14.2 ~ 16.2V | 18.8 ~ 22.5V | 30 ~ 36V | 56.5 ~ 64.8V | ||||
Protection type : Shutdown o/p voltage, re-power on to recover | ||||||||
ENVlRONMENT | WORklNG TEMP. | -30 ~ +70ºC(Refer to "Derating Curve") | ||||||
WORklNG HUMlDlTY | 20 ~ 90% RH non-condensing | |||||||
STORAGE TEMP.,HUMlDlTY | -40 ~ +85ºC, 10 ~ 95% RH non-condensing | |||||||
TEMP. COEFFlClENT | ±0.03%/ºC(0 ~ 50ºC)RH non-condensing | |||||||
VlBRATlON | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along x,Y, Z aXes; Mounting: Compliance to lEC60068-2-6 | |||||||
OPERATlNG ALTlTUDE | 2000 meters | |||||||
OVER VOLTAGE CATEGORY | ; According to EN61558, EN50178,EN60664-1, EN62477-1; altitude up to 2000 meters | |||||||
SAFETY | WlTHSTAND VOLTAGE | l/P-O/P:4kVAC | ||||||
lSOLATlON RESlSTANCE | l/P-O/P:100M Ohms / 500VDC / 25ºC/ 70% RH | |||||||
OTHERS | MTBF | 3271.9k hrs min. Telcordia SR-332(Bellcore); 856.5k hrs min. MlL-HDBk-217F(25ºC) | ||||||
DlMENSlON | 70*90*54.5mm(W*H*D) | |||||||
PACklNG | 0.27kg; 48pcs/13.74kg/0.96CUFT | |||||||
NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Harmonic current test at 90% load for HDR-100-XXN. 5. The ambient temperature derating of 3.5ºC/1000m with fanless models and of 5ºC/1000m with fan models for operating altitude higher than 2000m(6500ft). |

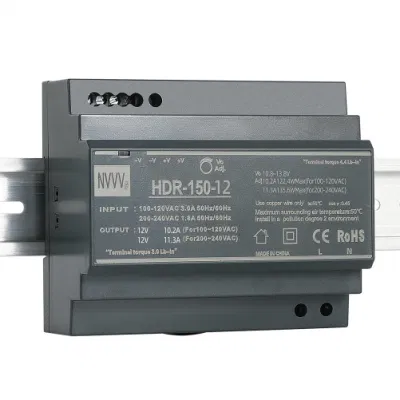

150W Ultra Slim Step Shape DIN Rail HDR - 1 5 0 series | ||||||||||
SPECIFICATION | ||||||||||
MODEL | HDR-150-12 | HDR-150-15 | HDR-150-24 | HDR-150-48 | ||||||
INPUT | DC VOLTAGE | 12V | 15V | 24V | 48V | |||||
RATED CURRENT | 115VAC | 10.2A | 8.55A | 5.31A | 2.72A | |||||
230VAC | 11.3A | 9.5A | 6.25A | 3.2A | ||||||
RATED POWER | 115VAC | 122.4W | 128.3W | 127.4W | 130.6W | |||||
230VAC | 135.6W | 142.5W | 150W | 153.6W | ||||||
RIPPLE & NOISE (max.) Note.2 | 100mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | ||||||
OUTPUT | VOLTAGE ADJ. RANGE | 10.8~ 13.8V | 13.5 ~ 18V | 21.6 ~ 29V | 43.2 ~ 55.2V | |||||
VOLTAGE TOLERANCE Note.3 | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ||||||
LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||||||
LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||||||
SETUP, RISE TIME | 500ms, 60ms/230VAC 500ms, 60ms/115VAC at full load | |||||||||
HOLD UP TIME (Typ.) | 30ms/230VAC 12ms/115VAC at full load | |||||||||
INPUT | VOLTAGE RANGE | 85 ~ 264VAC (277VAC operational ) 120 ~ 370VDC (390VDC operational ) | ||||||||
FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
EFFICIENCY (Typ.) | 89% | 89.5% | 90.5% | 90.5% | ||||||
AC CURRENT (Typ.) | 3A/115VAC 1.6A/230VAC | |||||||||
INRUSH CURRENT (Typ.) | COLD START 35A/115VAC 70A/230VAC | |||||||||
PROTECTION | OVERLOAD | 105 ~ 135% rated output power | ||||||||
Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed | ||||||||||
OVER VOLTAGE | 14.2 ~ 16.2V | 18.8 ~ 22.5V | 30 ~ 36V | 56.5 ~ 64.8V | ||||||
Protection type : Shutdown o/p voltage, re-power on to recover | ||||||||||
ENVIRONMENT | WORKING TEMP. | -30 ~ +70ºC (Refer to "Derating Curve") | ||||||||
WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||||||
STORAGE TEMP., HUMIDITY | -40 ~ +85ºC, 10 ~ 95% RH non-condensing | |||||||||
TEMP. COEFFICIENT | ±0.03%/ºC (0 ~ 45ºC) RH non-condensing | |||||||||
VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X,Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |||||||||
OPERATING ALTITUDE | 2000 meters (Note 4 ) | |||||||||
OVER VOLTAGE CATEGORY | ;According to EN62368 ,EN61558 , EN50178 ,EN60664- 1 , EN62477- 1;altitude up to 2000 meters | |||||||||
SAFETY STANDARDS | IEC62368-1, UL62368-1, UL61010, TUV BS EN/EN61558-2-16, BS EN/EN61558-1, EACTPTC 004 approved; Design refer to BS EN/EN50178, TUV BS EN/EN62368-1 | |||||||||
SAFETY | WITHSTAND VOLTAGE | I/P-O/P:4KVAC | ||||||||
ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25ºC/ 70% RH | |||||||||
OTHERS | MTBF | 3046.3K hrs min. Telcordia SR-332 (Bellcore) ; 535.9K hrs min. MIL-HDBK-217F (25ºC) | ||||||||
DIMENSION | 105*90*54.5mm (W*H*D) | |||||||||
PACKING | 0.31Kg; 32pcs/11Kg/1.0CUFT | |||||||||
NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The ambient temperature derating of 3.5ºC/1000m with fanless models and of 5ºC/1000m with fan models for operating altitude higher than 2000 (6500ft). 5. when the input voltage is 230VAC,delivers EMl Class B for radiated emission for the power supply; when the input voltage is 110VAC, delivers EMl Class A for radiated emission for the power supply. 6. Harmonic current test at 70% load . |
![Hdr-15W/30W/60W/100W/150W 5V/12V/24V/48V Hdr Series AC-DC Ultra-Thin DIN Rail Switching Power Supply SMPS](http://img6.grofrom.com/www.heweledsupply.com/226f3j00dAFqJoBKdcbG/Hdr-15W-30W-60W-100W-150W-5V-12V-24V-48V-Hdr-Series-AC-DC-Ultra-Thin-DIN-Rail-Switching-Power-Supply-SMPS.webp)
![Hdr-15W/30W/60W/100W/150W 5V/12V/24V/48V Hdr Series AC-DC Ultra-Thin DIN Rail Switching Power Supply SMPS](http://img6.grofrom.com/www.heweledsupply.com/226f3j00dmycJSeHKqbR/Hdr-15W-30W-60W-100W-150W-5V-12V-24V-48V-Hdr-Series-AC-DC-Ultra-Thin-DIN-Rail-Switching-Power-Supply-SMPS.webp)
![Hdr-15W/30W/60W/100W/150W 5V/12V/24V/48V Hdr Series AC-DC Ultra-Thin DIN Rail Switching Power Supply SMPS](http://img6.grofrom.com/www.heweledsupply.com/226f3j00JmObdwvaeoqU/Hdr-15W-30W-60W-100W-150W-5V-12V-24V-48V-Hdr-Series-AC-DC-Ultra-Thin-DIN-Rail-Switching-Power-Supply-SMPS.webp)
![Hdr-15W/30W/60W/100W/150W 5V/12V/24V/48V Hdr Series AC-DC Ultra-Thin DIN Rail Switching Power Supply SMPS](http://img6.grofrom.com/www.heweledsupply.com/226f3j00tAObJfeKScqg/Hdr-15W-30W-60W-100W-150W-5V-12V-24V-48V-Hdr-Series-AC-DC-Ultra-Thin-DIN-Rail-Switching-Power-Supply-SMPS.webp)
![Hdr-15W/30W/60W/100W/150W 5V/12V/24V/48V Hdr Series AC-DC Ultra-Thin DIN Rail Switching Power Supply SMPS](http://img6.grofrom.com/www.heweledsupply.com/226f3j00aAyqmDeJGbop/Hdr-15W-30W-60W-100W-150W-5V-12V-24V-48V-Hdr-Series-AC-DC-Ultra-Thin-DIN-Rail-Switching-Power-Supply-SMPS.webp)
Q1Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable. At the same time, we have overseas
warehouses so that you can get the products faster.
Q2Do you have any MOQ limited for the order?
A: Low MOQ, 200 pcs for sample checking is available.
Q3How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx, or EMS. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q4Do you offer a guarantee for the products?
A: Yes, we offer a warranty on our products.
Q5: How to deal with the faulty?
A: Firstly, our products are produced in a strict quality control system and the defective rate will be less. Secondly, during the
guarantee period, we will send new products with new orders for small quantities. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable. At the same time, we have overseas
warehouses so that you can get the products faster.
Q2Do you have any MOQ limited for the order?
A: Low MOQ, 200 pcs for sample checking is available.
Q3How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx, or EMS. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q4Do you offer a guarantee for the products?
A: Yes, we offer a warranty on our products.
Q5: How to deal with the faulty?
A: Firstly, our products are produced in a strict quality control system and the defective rate will be less. Secondly, during the
guarantee period, we will send new products with new orders for small quantities. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation
