Basic Info.
Model NO.
FY24010000
Certification
SASO, GOST-R, KC, PSE, CTIA, RoHS, TUV, CB, CE
Recyclable
Recyclable
Item Name
24V 10A LiFePO4 Battery Charger
Inrush Current
10A
Protections
Short Circuit Overload Overvolt
Color
Black
Application
Electric Car, Motorcycle
Efficiency
>89%
Payment
30% Deposit in Advance, 70% Before Shipment
Leadtime
3-6weeks
Transport Package
White Box+Export Carton
Specification
Dimension: 178*80*46mm
Trademark
Fuyuang
Origin
China
HS Code
8504409999
Production Capacity
500000PCS Per Month
Product Description

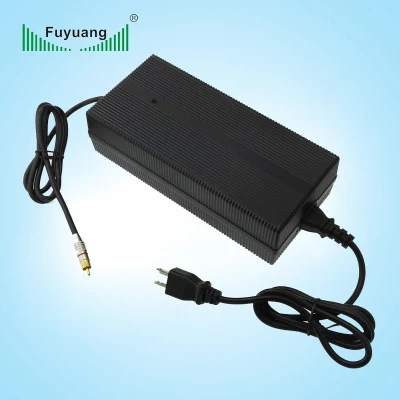

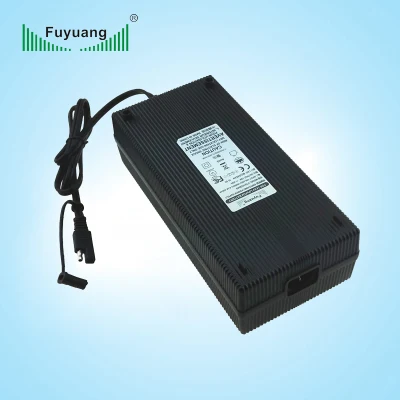

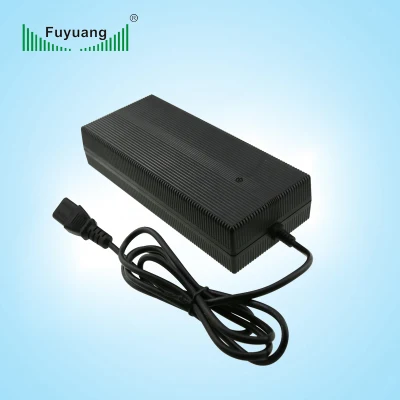

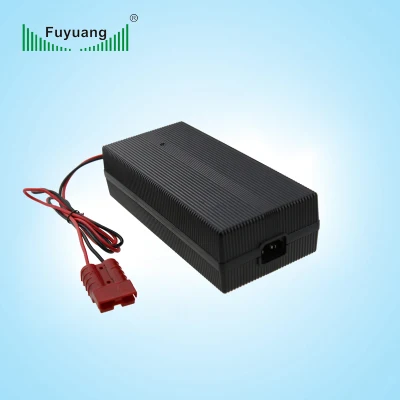

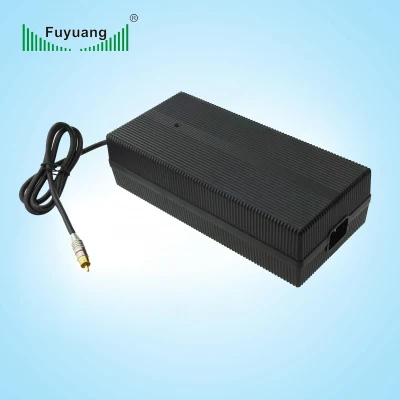

Fuyuang 3Y warranty UL CE ROHS KC 24v 10a battery charger for lifepo4
Product Description:
Our battery charger,power adapter and LED power supply are widely used in battery pack (Lithium battery, LifePO4 battery, Lead acid battery, Ni-MH battery), E-bike, Electric Golf Cart, Electric Vehicle, Electric Toys, Power tools, Motor, Massage, Equipment, Monitoring System, Beauty instruments, medical instruments, Safety Security Products, Humidifier, Water-pump, Wheel Chair, Self-balance Scoober, Air Cleaner, Print Device, Precise Digital Measuring Apparatus, Audio Amplifier, LED Lighting, Digital Communication Products, LCD, LED Display ,etc
Features :
*Level VI Energy Efficiency power adapter ,LED power supply and battery charger.
*We have passed ISO9001 since 2007.
*We certify battery charger,power adapter and LED power supply at the highest levels, earning UL, FCC,cUL, NRcan,TUV/GS, ,EMC, CE,LVD,ErP,CB,RoHs,SAA, REACH,C-Tick,RCM,MEPS,KC,EK,PSE,CCC and ISO9001 certificates.
*Protections: Short circuit/ Over current/ Over voltage/ Over temperature
*Built-in active PFC function
*No load power consumption<0.5W
*3 years warranty
*OEM and ODM are available,customize AC and DC plug--what you want,what we do.
Specification :
| Item | Parameter |
| Part name: | Fuyuang 3Y warranty UL CE ROHS KC 24v 10a battery charger for lifepo4 |
| Model No. | FY24010000 |
| AC Input: | 100-240V,50/60HZ |
| Max charging voltage: | 54.6V |
| Max charging current: | 10A |
| Protection: | short circuit, over current and over voltage protection. |
| Efficiency: | 88% |
| Power factor: | 0.89 |
| HIPOT testing: | 3000-3700V |
| Drop testing: | meet UL standard. |
| Temperature: | Case 65 ºC Max. |
| Operating temperature | -29ºC~ +45.5ºC |
| Storage temperature: | -40ºC~ +75ºC |
| MTBF: | 30000 hours full rated load at 25ºC |
| Energy Efficiency: | Level VI( DOE or COC) |
| AQL: | MIL-STD-105E II CRI 0; MAJ 0.25; NIN 1.0 |

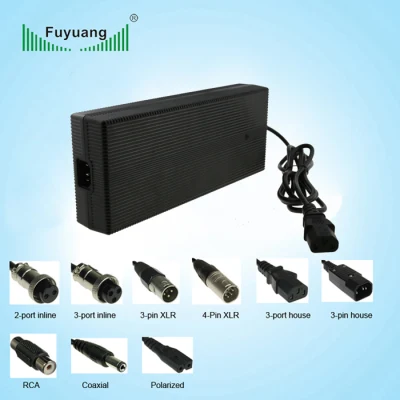

DC plug customized as per your demands
5.5*2.1mm / 5.5*2.5mm / 3.5*1.35mm / 4.0*1.7mm / 2.5*0.7mm / 7.9*5.0mm / 4 Pin / Cigarette Lighter, Canon Connector, XLR Connector, Inline Plug, XT60, TX40/60, M8/M12/M16, etc.
